Shift Star,, Shift Spring BMW S1000rr, Factory Pro 800 869-0497 23008569951 and 23008528095

Graham Gillies with his s1000rr October 23, 2013 Andronico's parking lot	BMW S1000rr std and HP4 2009 - 2018 and 2019 - 2021 awesome bike.	Jeremy Cook -Austin- 2017


Scheduled maintenance Suspension upgrades Safety Wiring Classic mount and balance of tires. We balance tires with the force of gravity - like the deities intended. Just like they do at a MotoUSA National. Shift Spring Installation	Wheelsmith Racing - Retail Shop (San Francisco area - North Bay - Marin) 415 883-5620	Jeff Lane WMRRA #97
EVO Shift Star
EVO Schaltstern Shift Star pn: SHFT-STAR-B10 $239.95 years: 09-22 replaces 23008528095 stock star 23007720772 stock star 23008569951 stock star (the "new" BMW star) 1. Choose your shipping method 2. June 3,2019 Yes sure it’s better for both gsx and bmw . Waiting for the gsxr spring bro A in Qatar April, 2013 Hi, Can you send me one of the wonderful shift springs to Germany? I need one for my hp4! Can you tell me a price for the spring include shipping to Germany, please. Many thanks, Greetz, Sven	From the originators of Shifting tech! EVO Schaltstern Shift Star Our EVO Shift Star features: improved material selection to combat arm erosion Factory Pro star geometry for fewer missed shifts solid, 1 piece design stronger, more ductile shift pins a new German name - Schaltstern (use with our B10 shift spring) Improve BMW gearbox missed upshift and downshift problems. Makes even the stock quickshifter work better. Use with our B10 shift spring. Improves shift speed by 3ms to 5ms each shift - up and down - and helps eliminate missed up shifts and more consistent down shifts, especially under trackday and race conditions. Helps prevent shift engagement dog and shift fork damage caused by missed shifts. Better shifting - even at race speeds - even with the stock BMW quickshifter. I know why the s1000rr breaks the pins off of the stock shift star. Marc Our B10 star addresses the root cause of the pins breaking off the stock star. We addressed missed shifts AND stronger pins while they ONLY made stronger pins but didn't improve the shifting speed. Easy install - just have to remove clutch basket assembly. No case splitting required. Takes 1-2 hours. Suggest have a BMW Service manual. Note: for smoothest, most effective shifting with Aftermarket programmable quickshifters: If using a "switch type" quickshifter shift rod sensor (like Dynojet), with programmable "shift kill duration" delay, you should subtract 5ms to start. 35-40-45ms is not unrealistic. "HM" strain gauge type quickshifters - may want to look in to decreasing "sensitivity" a bit as the shift completes quicker with the spring, Changing sensitivity to "less" is similar to decreasing "shift kill duration".	2016 overall champion Kyle Ohnsorg 3 track records BIR "Donny Brooke" 197 mph top speed main straight track record 1.39.412
F-Pro Shift Spring pn: Z95-B10-X085-B71-090 $89.95 fits years: 10-22 (replaces 23 00 8 555 882 spring) 1. Choose your shipping method 2. Sept 2013 Stephanie DO IT. The END of FALSE NEUTRALS Sept 2013 Clinton I haven't got one false neutral yet. Used to be once a race... do it... April, 2013 Hi, Can you send me one of the wonderful shift springs to Germany? I need one for my hp4! Can you tell me a price for the spring include shipping to Germany, please. Many thanks, Greetz, Sven	BMW "090" Shift Spring Improve BMW gearbox missed upshift and downshift problems. Makes even the stock quickshifter work better. Improves shift speed by 3ms to 5ms each shift - up and down - and helps eliminate missed up shifts and more consistent down shifts, especially under trackday and race conditions. Helps prevent shift engagement dog and shift fork damage caused by missed shifts. Better shifting - even at race speeds - even with the stock BMW quickshifter. Easy install - just have to remove clutch basket assembly. No case splitting required. Takes 1-2 hours. Suggest have a BMW Service manual. reference: stock spring and detent arm assembly 2009 23 00 7 716 793 2010 23 00 7 716 793 2011 23 00 7 716 793 2012 23 00 7 716 793 2013 23 00 7 716 793 2014 23 00 7 716 793 2015 23 00 7 716 793 2016 23 00 7 716 793 2017 23 00 7 716 793 2018 23 00 8 5 55 882 2019 23 00 8 5 69 956 2020 23 00 8 5 69 956 2021 23 00 8 5 69 956 2022 23 00 8 5 69 956 Use our spring with any the above part numbers Note: for smoothest, most effective shifting with Aftermarket programmable quickshifters: If using a "switch type" quickshifter shift rod sensor (like Dynojet), with programmable "shift kill duration" delay, you should subtract 5ms to start. "HM" strain gauge type quickshifters - may want to look in to decreasing "sensitivity" a bit as the shift completes quicker with the spring, Changing sensitivity to "less" is similar to decreasing "shift kill duration".	2016 overall champion Kyle Ohnsorg 3 track records BIR "Donny Brooke" 197 mph top speed main straight track record 1.39.412
The stock cast shift star.	The stock star removed and our F-Pro shift spring installed onto the stock detent arm. Arm swung out of the way to allow EVO Shift Star installation. pics courtesy Tobin O'Connor York Dynotuners Cycle Shop York New Salem, Pa 17371	Carefully lift detent arm over the shift star. Line up the detent arm hole with the pivot bolt and tighten the bolt. Tighten up the shift star. Use Loctite.
Photo Gallery click here to supply your S1000rr race pictures)
Dave Thomas #808 Thunderhill, California posted Aug 2015
Heidi Denmark posted Feb 2012
Abdulla Khalid posted 2011 Night Ride on Losail International Circuit Google Earth KMZ - RH click, Save link - view in Google Earth
JOS Endurance Team 2010 Jens Schilling Ralf Lemmermann Lars Albrecht
	Thanks A&S BMW, Roseville, CA for the graphics and part numbers www.ascycles.com

The Shift mechanism shift spring made the bike shift quicker. The gearbox shift mechanism was pretty lazy. No more missed shifts (I meant fewer missed shifts, more secure shifting and quicker).

Ahh! :-) Here's Mark Cantin's most excellent article with a lot of BMW supplied info

According to BMW, too, power is the same 193 at peak with Sport, Race and Slick modes.

How it all works together
The four Mode setting allow a rider to select a set of variables according to riding conditions, preferences and skill level.

Slick, Race and Sport Modes all make the same power at full throttle. Any minor variations in power are in the Factory Pro industry standard 1/2% repeatability range.
If I was doing close R&D work, we could get a little tighter on the repeatability,
Mostly, we were trying to verify what some other dyno company said - that was that Race Mode made 4-5 more hp than Sport Mode at full throttle.
It doesn't when power measured under load - maybe it does in a 6 second 4th gear sweep (as if that's "real world").

Slick, Race and Sport make most "full throttle power". About 160 True hp today.
Rain makes almost the same power up till 7000 rpm, then, about 12 hp less at 8000 rpm and around 40 hp less at 12,000 rpm.

Slick, Race and Sport modes have differing levels of traction control - based on how far the bike is jeaned over (based on solid state gyroscopes).
That's the short answer - I think it's a bit more complex than that - as in "can you do a burnout"? If so, in which modes?

Slick, Race and Sport make, probably, most to least, power at smaller throttle openings.
There are other slight differences in fueling in the different modes.

When installing clutch, make sure all notches on the backside of the clutch basket are lined up.
Telltale: if the clutch lever has more free play than before, the notches aren't lined up.

Took airbox off - to look
Primary stack 59mm od and 54mm id.
Secondary stack about 2.25 inches
Throttle return spring too stiff

Still want to see if Rain, Sport, Race and Slick TC settings make more power. The local dealer said that they were told that a dealership level dyno at Leo Vince said that RACE makes 4-5 more djhp than SPORT Mode (it actually makes the same power at full throttle Sport, Race and Slick)..

Team called up and said that, according to a SoCal dealership, weird traction control function might be caused by the PC5 being wired in a way that interferes with the CAN communication stream used by the Bosch systems (which is made in Hungary, btw).

Drove a few hundred miles to our spring manufacturer yesterday afternoon. Saw a WW2 3400 hp (12,800 dynojet hp :-) B-25 at the airport near there. I have 2 hours of logged flight instruction in a B-25. Take a guess at how much fuel costs... a B-25 burns about 160 gallons per hour at $5 a gallon at low power "cruise". $800 an hour for gas.

Got home after 9pm. We hand made about 20 prototype shift springs.
Tried them today to try to dial in better shifting. Finally settled on a spring that I first guessed wouldn't work. Just goes to show that when you "think" you know,... you don't really know,

"traction Control not switching" problem was potentially bypassed - Rider says roll the bike around a bit and the traction control will then change, like it's supposed to. We did, and it "straightened out and flew right", At least today,

Traction control control hexed. Worked 2 nights ago, now it won't change. Yes..... Mode push till desired mode selected. Pull clutch lever in and release. Worked 2 nights ago, but, not today...... Talked to rider.... he says try rolling the bike around sometimes made it switch.

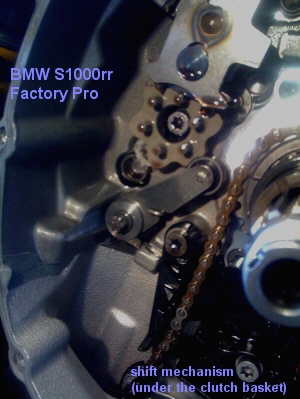

Pulled clutch to get at shift mechanism to address shift issues on the track.
Nice. Easy. Very japanesey looking. 27mm clutch basket nut. 12 point 6mm socket to remove detent pivot bolt.
Looks promising. Drove 200 miles out to Central Valley to make a batch of prototype springs. Shift mech could be better.

Switching to pump premium and will test Slicks, Race, Sport, Rain Traction Control horsepower output, later.

RED = pump premium 164 true hp peak and 5 hp better midrange. (164 True x 1.25 = 205 djhp)
Blue = Sonoco GT260 AMA spec fuel 163.3 true hp peak. (163.3 True x 1.25 = 203.75 djhp)
".7" hp is well within the 1/2% range of repeatability - so, best I'd be able to say is that both fuels made about the same peak hp. Midrange, though - the pump premium 91 octane, was better than the Sunoco AMA spec fuel. (and according to AMA tuners, the Sunoco AMA spec fuel isn't as strong as pump premium)

maybe needs more or less ignition timing, using 5 gas ega and steady state dyno as clue. Has poor co2 numbers when making best power.
Interestingly, when just looking at residual O2, the dynojet "autolink mapping" looked ok, but according to power produced at "other than right AFR". the engine wanted something different and was smoother and made more power under load with different fuel amounts.

w AMA spec fuel, 163.3 true hp retuned with Arrow system and stock air filter, Traction control off (or it dies at about 10.7k)
Was ~160 with dynojet autolink mapping.

no power light PC5 secondary box, disconnected it. Has dynojet injector connectors with no connector locks.
PC5 is used to cut fuel to secondaries for quickshifter to kill all 8 injectors. Rider was having trouble shifting as he was assuming that the qs was killing the engine (but it likely wasn't).
Told mechanic to call dynojet.

turn off traction control or bike shuts off at about 10.7k rpm on EC997 dyno.

non optimal "AFR target based" mapping, too rich in more than several places

at 10.7k, bike burps then shuts off engine until key is switched off then back on.

Mode	Power/ Throttle Response	DTC/ABS Settings	Power Freeze Lean Angle	Wheelie Control
Rain	153 hp, 5% throttle dampening	High DTC intervention Anti rear wheel lift ABS	38º	5 sec before throttle is reduced
Sport	193hp, 5% throttle dampening	Medium DTC Anti rear wheel lift ABS	45º	5 sec before throttle is reduced
Race	193hp, no throttle dampening	Light DTC	48º	None
Slick	193hp, no throttle dampening	Very Light or no DTC	53º	None
