Harley Davidson Twin Cam Engine tuning

Factory Pro's EC997 Dyne Systems were specifically designed to have the ability to effectively tune fuel injection systems. Other common  "dealership level" dynamometers are descended from heavy, slow reacting inertia dynos that have inflated, untrue HP numbers.
They only "tune to an af ratio" and  not to where the engine runs the smoothest or has the best power or mileage or cleanest exhaust.

Locally,  we enjoy specialization in dealer referred tuning on Harleys.
Listed are recent projects that we've tuned for local HD dealers.

We don't sell or install HD engine parts or do retail HD tuning - we just do the tuning.

We can tune with:

ECU Programmers

HD Race tuner

This is the preferred method is to reprogram the stock ECU. It takes more time, but the improved long tern reliability and enhanced tuning flexibility is the gain.

From a tuner's point of view, the HD Race Tuner takes the longest, but is less troublesome than other ecu flashing software offerings.

After completing the tuning session, both the Directlink and HD Race Tuner provide equally reliable and long lasting service for the rider.  We have no problem using either of the products.

There is an initial cost to each. The Directlink requires a fixed cost key that would retail for about $250 to $300. The HD Race Tuner costs $400 to $500.  A good tuner may spend 3 to 5 hours to tune to Best Power and will probably charge up to $500 additional tuning time for the highly skilled custom tuning work performed on $50,000 to $100,00 worth of equipment.

We don't do it, but some people still push a button on their common "dealership level" dyno and automatically "tune to an a/f ratio" with a power commander and call it done. That takes a lot less time, and doesn't result in optimum tuning or best mileage.

Add-on boxes

Teka 4 usb and Power Commanders

We do both (section under construction)

Other FI systems

Factory Pro has been tuning fuel injection for many years. We even design, build write software for the EC997 dyne system. The EC997 is probably the most purpose built tuning dyno in the world - with many features exclusive to our dyne systems, all provided to make tuning to Best Power settings (rather than common, low tech dealership level "tuning to an a/f ratio" dynos.)
We've used complicated systems, such as Magnetti Marelli, Delphi, Motec, EFI Technologies (the California one), factory Kawasaki, Yamaha, Suzuki and Honda - so, I believe that we can figure out most any FI system.

Outside services

Factory Pro's Marc Salvisberg is available to consult on software interface development. The secret to making desirable software is indeed the interface.
Factory Pro's EC997 dyne system software is a prime example of design. It requires very little book study to accomplish the tasks that a tuner would need to do. All with a progressions of simple screens and simple, on screen instructions. A new user can accomplish, with little training, do what would take a college educated engineer to do on some other, otherwise capable, dyne systems.  Email comtact

Recent services performed

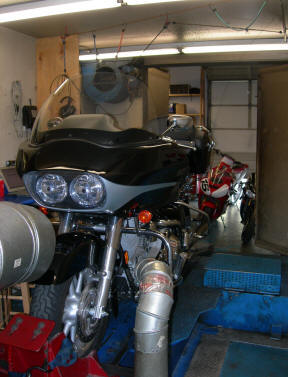

	2005 FLTR1 Barber Base 88ci with SE air cleaner and slipon exhaust: 69 TRUE HP at 6000 74 ftlbs at 4000 Final 95ci SE heads, cams, SE ac, slipon exh with fuel and ignition timing with Directlink 83 TRUE HP at 5500 93 ftlbs at 3500 Tuned April 08, 2006 at Factory Pro Tuning Center in San Rafael, CA using Directlink. 6 hours tuning. Comment: Excellent engine package.	Same HP and torque as base from idle to 2500 - no loss. +10 TRUE hp at 3000 rpm +15 TRUE hp at 4000 rpm +16 TRUE hp at 5000 rpm +15 TRUE hp at 6000 rpm +16 ftlb torque increase at 3000 rpm +19 ftlb torque increase at 3500 rpm   Note! All Factory Pro HP is True HP scale as measured on a research quality EC997 Dyne System. It is not inflated as the dynojet and their clones HP numbers are. For a dj number, add 10% to 15% to True hp.
	200x FLHX Mike A. Base 88ci with SE air cleaner and slipon exhaust: 69 TRUE HP at 6000 74 ftlbs at 4000 Final 95ci SE heads, cams, SE ac, slipon exh with fuel and ignition timing with Directlink 83 TRUE HP at 5500 93 ftlbs at 3500 Tuned April 08, 2006 at Factory Pro Tuning Center in San Rafael, CA using Directlink. 6 hours tuning. Comment: Excellent engine package.

OK - I got tired of looking up cam specs, so here's some pages from some cam manufacturers

TWIN CAMS

Leineweber Cams
Ahhh! :-)
How logical! Just a few cams to choose from and  good descriptions

Andrews Cams: click here for latest information

Do NOT use this chart as the last word in Andrew's cam specs - Always visit their website to get their latest information.

How quick can a Steady State test actually be? 2 minutes..........
110ci HD, Thunderheaders, 1.5K to 6K. Realtime HP for the cleanest emissions and the smoothest running engines.

Big Boyz' HD Cam Specs and other HD related online calculators - click here

Big Boyz uses the Factory Pro EC997 dynamometer for highest quality tuning results!
