Teka SFI 2

The new 2009 Factory Pro
Teka SFI 2 Suzuki Tuning System
2008, October 11, 900pm (existing backorders will be filled first, later next week))
(link to original Teka SFI page)

The most cost effective Suzuki tuning system

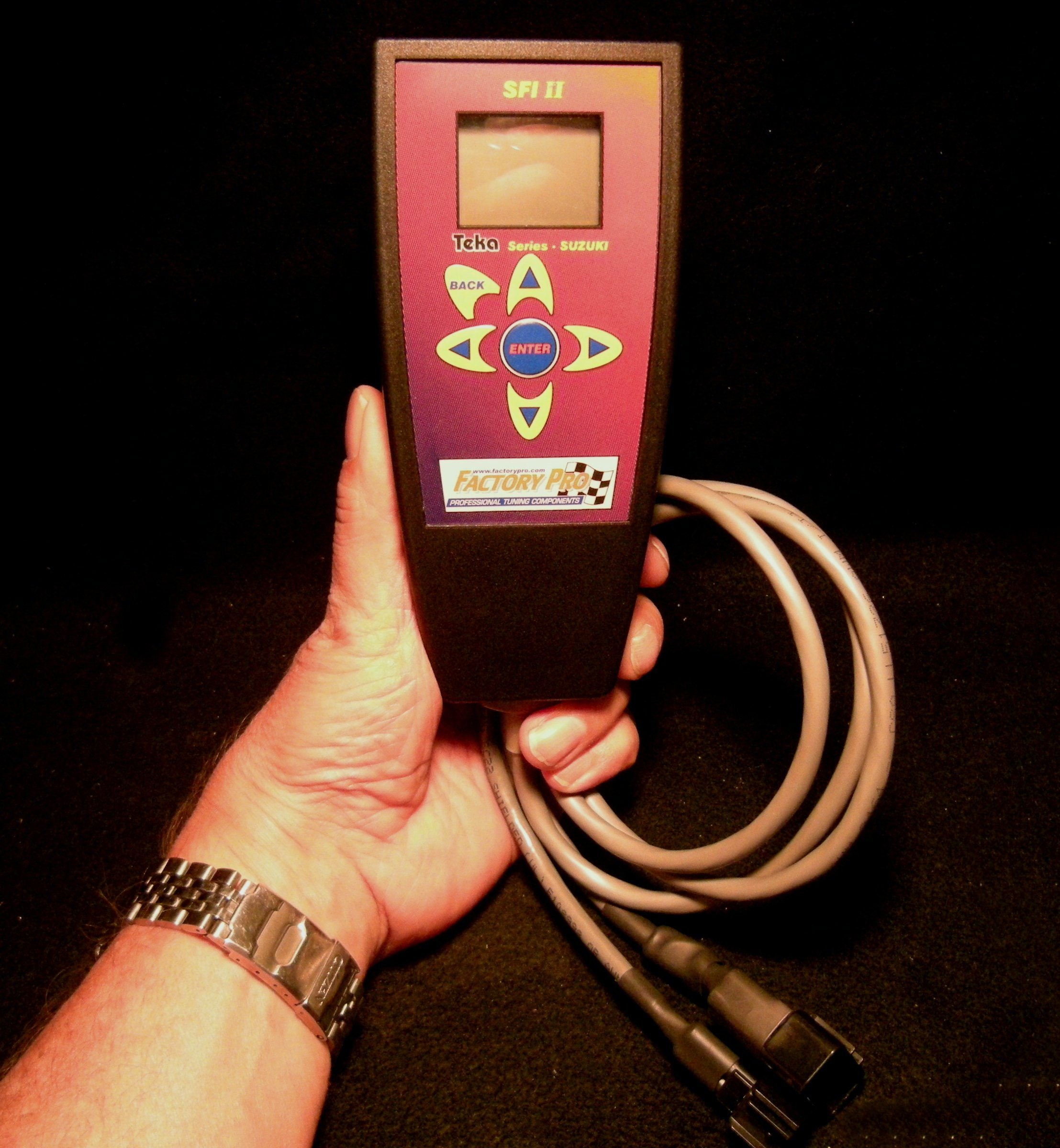

Teka SFI 2 tuning reprogrammer

Pull the seat, connect the SFI 2, make tuning changes, remove the SFI 2. Done.

Built on the success of the original Factory Pro Teka SFI, this is the new and improved SFI 2 tuner's tool.

The rugged, pocket sized Factory Pro SFI 2 tuner is a valuable tool that allows stealthy retuning of the stock Suzuki ECU (no permanent add-on boxes to the bike required)
Works on 16 bit and 32 bit street Suzuki's, 1998 till at least 2008. Wide, cost effective range of usage.
Tunes in REALTIME.
No mandatory additional cost for "tuning boxes" to the bike owner.
Stores last used tuning settings internally.
Tunes idle settings - on all or each individual cylinder for best idle and cleanest running cruise.
Can reset bike's ECU back to "zero" values, to easily get back to stock ECU settings.
Improved "all on one screen" throttle tuning ranges - we've increased the screen size and improved the screen resolution from the original Teka SFI.
New Backlight screen feature - you can even tune in the dark.
Designed to tune typical "pipe, air filter, stacks, ignition advancer" bikes. Engine modified bikes, or bikes with "the secondaries removed" will develop "mixture humps" that may require a "mappable" device.
Questions?

Teka SFI 2" Advanced Mode" additional features include
(accessible when used with the MMT Memory Module Tuner and, optionally, the TPS harness )

Displays REALTIME Throttle position display for improved tuning accuracy in tuning in Advanced mode (requires Teka SFI 2 TPS harness)
Enhanced Throttle position resolution as compared to earlier model Teka SFI (requires MMT Memory Module Tuner installation)
Optional Auto select Throttle Position Tuning ranges, based on % throttle opening for easier part throttle tuning (requires Teka SFI 2 TPS harness)
Manual select Throttle Position Tuning range, based on % throttle opening
Improved "Reset to factory Zero Settings" menu selection
Reads out MMT tuning settings that are in the ECU (requires MMT Memory Module Tuner installation)
10 user Tweakable tuning settings on the MMT Memory Module Tuner for fine tuning.
- "5" = the installed tuned mapping - "5" is the "normal" setting.
- "6" = slightly richer than the tuned map, "7" slightly richer than "6', up to "9".
- "4" = slightly leaner than the tuned map, "3" slightly leaner than "4", down to "1".
- "0" = all to "zero", stock ECU setting.
- Change" 0-9" with a small screwdriver.
- Realtime running changes for instant feedback.
- All switched adjustments are easily reversible and repeatable.
New Backlight screen feature - you can even tune in the dark.
Questions?

Teka SFI 2 Universal TPS opening reader
(advanced SFI 2 mode - requires TPS harness and hookup))
works on.50-5 / .5-12 vdc TPS or similar potentiometers

Auto Ranging TPS calibration (similar to joystick calibration).
Auto polarity switching for easy TPS wire hookup (you can't hook it up backwards)
Large Throttle % digits for easy viewing.
Protected up to 12 vdc (most all TPS's are only 5 vdc).
Works on most all carbed or EFI systems that have a TPS.
Can be used as a "tester" to monitor "EXUP", "SET" or similar exhaust system valve operation.
Can be used to monitor throttle body "secondary butterfly" operation.
Can work with many modern 0-5 or 0-12 vdc sensors, as in pressure, coolant, gear shift location.
Can be used as a .5-12 vdc voltmeter and TPS setting aid.
Very useful for troubleshooting warranty and transient drivability problems that occur at "some throttle position" while riding.
Questions?

The Teka SFI 2 Suzuki Fuel Injection tuner works on:
- gsxr 600, 01-08
- gsxr 750, 98-08
- gsxr1000, 01-08
- gsx1300r Busa, all years
- B King
- sv650, 03-08
- sv1000, 03-08
- TL1000r, all years
- TL1000s, all years
- DL650 and 1000, all years
- Boulevards
- M109r (works GREAT on 109's!) and many other street Suzuki's
- Questions?

Teka SFI 2 Professional Tuner's Kit
(w/ case, 1 MMT Module, TPS harness, Battery Pack)

Best for professional race and cost effective dealership use.

1 Teka SFI 2 tuner tool w/ TPS and MMT support

1 Universal TPS Harness

1 starter MMT Memory Module Tuner (additional units available below)

1 Battery Pack (for use in universal TPS and remote MMT module tuning)

1 foam lined storage case

$895 / Teka SFI w/ above accessories with case

additional MMT modules available below

Teka SFI + Shipping destination

SFI 2 Accessories

Teka SFI 2 "bare bones" tuner only
(with case but w/ no accessories)

1 Teka SFI 2 tuner tool only (works like the original SFI)

Great for private use

does not do TPS or enhanced TH % resolution w/o below accessories

1 foam lined storage case

optional MMT module available below

$695 / bare SFI 2 tuner with case only

Teka SFI only + shipping

extra MMT Memory Module Tuner units
(1 is required for user tuneability and enhanced TH % resolution - not required for "Classic Mode" SFI 2 Tuning)

Install the small, new lightweight Teka MMT module - watch the enhanced Teka SFI 2 tuner resolution features come alive!
Less than 1/2 the weight and size of a PC3
Use to access Teka SFI 2 MMT map's "hi-res" programming
Provides easy access user fine tuning feature
Accessing enhanced SFI 2 tuning features and resolution
Use 1 per bike as a suggested option

Battery Pack
(included in Tuner's Kit, additional for the "bare bones" kit)

To power the SFI 2 for "Universal TPS" or voltmeter use
Uses 9 vdc battery
Will not work on the original Teka SFI

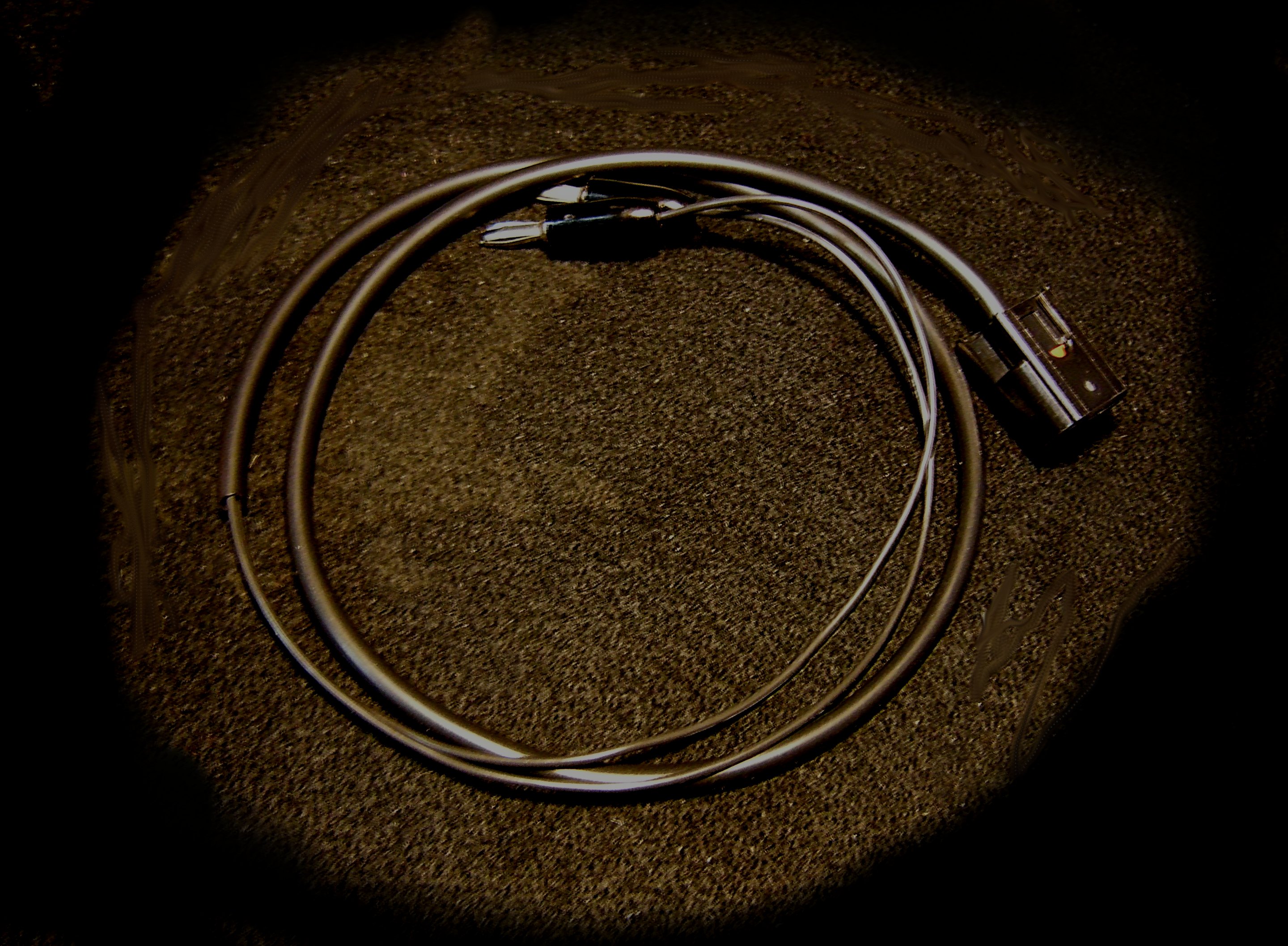

TPS harness
(included in Tuner's Kit, additional for the "bare bones" kit)

for activating SFI 2 "TPS % Display" and .5 to 12vdc voltmeter on Teka SFI 2 screen
Add to Bare Bones SFI 2 unit
Will not work on the original Teka SFI
One required for the SFI 2

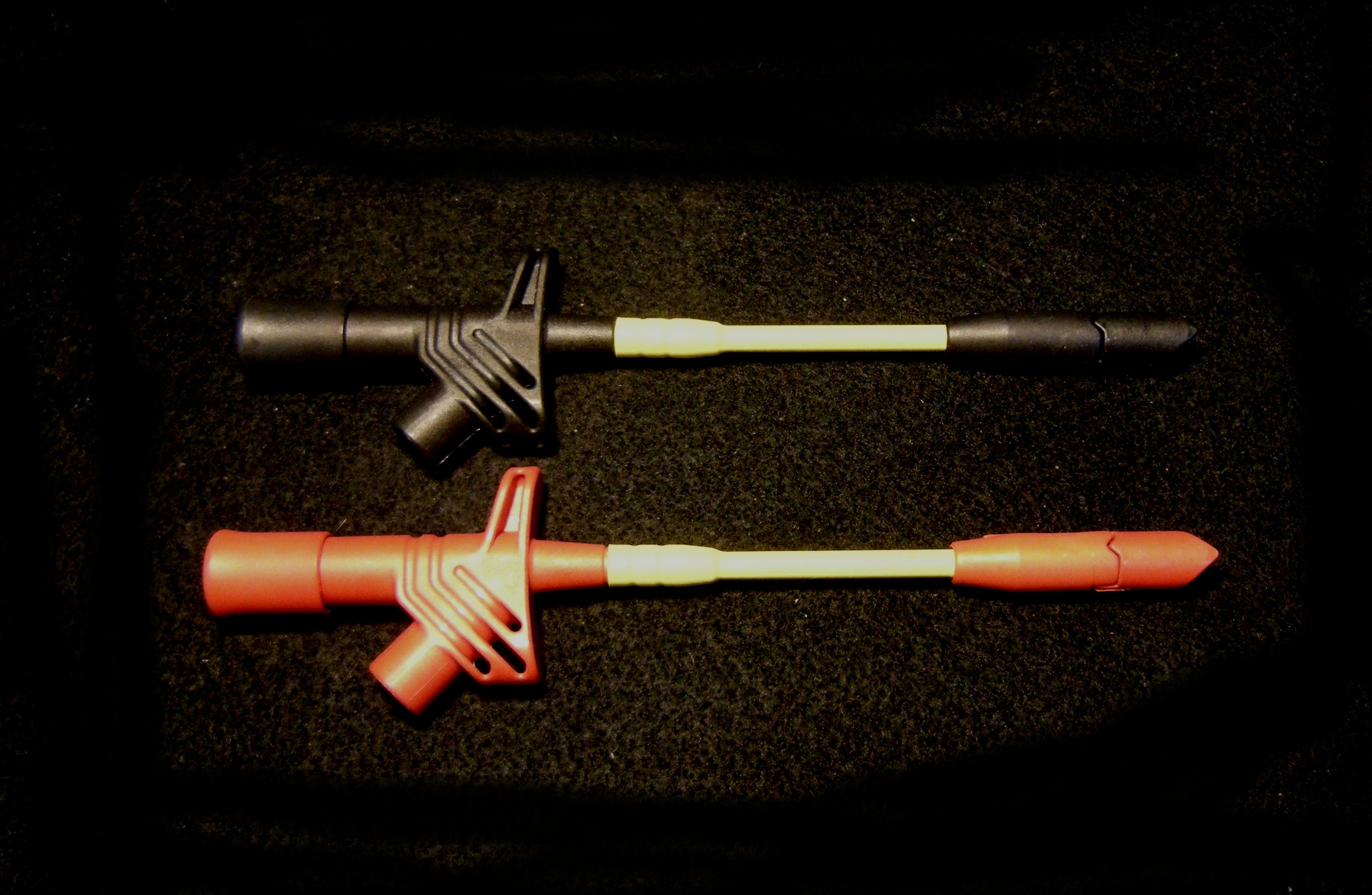

Probes, wire piercing
(for quick, easy TPS connections, an option for the TPS harness)

Clamping and piercing wire probes
- make temp wire (TPS) connections without having to strip wires

Instructions
