Suzuki GSX1300R Hayabusa

and even faster with the new Factory Pro S89 V Stacks, TopKick and FatBack Cams and smoother and quicker shifting with the new Factory Pro Shift STAR!

Hayabusa Superflare V Stacks

Marc Salvisberg of Factory Pro designed and tested. Patented clipless design.

Stock engine Busa with a race exhaust system
HEALTHY +6 to +8 True HP gain at 9000 rpm when measured under a real load on a stock engine. We did not change fuel injection tuning.

09 21 06:
Have a 1397cc modified engine?
An 1397cc engine showed 3-4 True HP improvement in the upper midrange and 1-2 at full throttle at the lower rpms over both the 48mm stock and the 50mm "other brand stack".
....................

Note: All testing done under fully loaded dyno conditions on EC997 Dyne systems to get proper HP production. Testing done on dealership level dynos "inertia" loading may appear to be lesser or greater amounts of power.
What works best under "inertia" dyno load is rarely what works best in the real world - That's why we never use common dealership level dynos for testing or feedback.

Drop-in them in an hour. Ride the bike.

Factory Pro Tuning Centers

To prove that "bigger isn't automatically better...... Our TopKick, dropin cams and or Superflare Stacks made the same or better peak power than that properly remapped 1397cc, milled, ported, valve springed, cammed engine......

SHOULD a stock bore, unported engine make better power  than a big bore, ported engine?
Not if the big bore engine was properly designed. It looks like the 1397cc engine is missing potential 10 to 15 hp.

Bigger isn't Better when it doesn't fit the application.........


Our own testing:


2007 February 2

and....

even though the dj dyno's aren't very reliable for HIGH hp levels, esp. at high rpm on large,  bikes, here's one that worked well - So - even though.... I'll take it.
BLUE is the FP stacks

This looks like Yosh Stage 1 cams, Ti Force exhaust, and some airbox mod


BLUE line
+4 True hp on top and +4 to +8 in midrange


RED line
is without the Factory Pro stacks.

 Less than an hour - under $250.

NOTE:
That 10k REAL rpm on this dyno chart is about REDLINE, 10,500ish rpm on a normal, optimistic stock tachometer,

10.5k real rpm (as shown on this dynojet graph) is actually banging off the rev limiter.= and that's not how most people ride - even pro drag racers......

The average HP, across the top, is much better with the stacks.

Marc,

I think your Superflare V-Stacks have added to the real power of the Busa Motor.

 It pulls so hard, that it will walk away from any stock motored Busa.

 It has crazy power off the line and top end is stupid fast. I am getting 178 HP to the crank with 101 FPT.

My Bike is a monster, and I love it.

Thanks for producing such a fine quality product.

Regards,
Thomas H Gray Jr
Hewlett-Packard

Hi,

i have installed just three days ago a Superflare velocity stacks kit on my COMPLETELY STOCK '00 Busa (only mod is NGK iridium spark plugs), and noticed a very light improvement in power and torque curve, in all the useful rpm range. not impressive, but slightly improved performance.

it is basically the same sensation you have after doing a very accurate tuning of the engine synchronizing the throttle bodies, changing the spark plugs and air filter after a long period... substantially the engine behavior is the same, but it runs smoothly and sharply.

one of the things i have noticed most is an improved capacity to wheeling in 1st and 2nd drive.

i hope my school English to be exhaustive

Lensflare

Joined: Nov. 2006
Location: ROME - Italy


Shift STAR kit for MUCH better and quicker shifting

SHFT-EVO-KIT-S92

00-07 years  $169.95
25350-24F00 oe
25381-13E10  oe

1999  only    $199.95
Evo Shift STAR,  Microbearing Detent Arm, spring and gasket.
International buyers will be billed additional $18 for USPS Global Express shipping.

October 10, 2006

 To: Marc Salvisberg
Subject: Re: Hayabusa - Star shift kit to NZ

Nice talking to you and all that a couple of weeks ago.
I have done a few hundred km's with this now and I have to say it is a rather pleasant improvement.
I have always thought that the shift on a Busa is a pretty good thing when compared to earlier big bikes like the ZZR1100 and even earlier still the VF1000 but it is still a much meatier affair when compared to modern bikes of smaller capacity.
This changes that somewhat. Not quite as sweet as say a CBR600 but along those lines.
I like the way that you can do lazy up changes around town without the clutch and it slips through as smooth as silk.
Also it is not that difficult to install either as long as you have the gear to get the front sprocket nut undone (a rattle gun is handy) and you are prepared to bend up a ring spanner so as to get that one gearshift housing cover bolt that is a bit hard to get at.

Regards
Rob Hookway - NZ


Factory Pro's awesome new
Shift STAR kit for the Busa

Banish the "Busa Boot" shift forever.

Includes Factory Pro's AWESOME Marc Salvisberg designed Detent Star - Totally changes the rough shifting the Busa's are well known for into the sweetest, smoothest shifting bike in town AND the quickest non-airshifting bike at the strip - you'll think you bought a different bike.

Better / quicker 1-2 shifts.
Virtually eliminate missed shifts - up and down.
Easier to find neutral.
Quicker 3rd through top gear shifts.

Perfect for drag racing and street!
You can decrease your "shift kill" time for better ET's

Works with or without undercut transmission. Works with and without an air shifter. It makes a "foot" shift an extremely quick event - Almost eliminate a missed 2nd gear shift (though if you try, you can still miss it...)

 In fact, I'd try the Factory Pro Shift STAR Kit before I pulled the engine down to  "fix" the gear dogs - as long as the gears aren't damaged so much that the gears engage and then pop out at high rpm  - that's symptom of rounded gear dogs.

Includes:
Factory Pro designed, refined, CNC machined, heat treated DETENT STAR, Factory Pro Microbearing Detent Arm (on the 99's only), Factory Pro's own heavy duty detent spring and a new gasket. Makes shifting quicker and more positive - "virtually" eliminating missed shifts. The stronger detent spring rotates the shift drum quicker and the gears are more likely to engage under quick shift conditions - and "lazy" shifts work well, too -
The Factory Pro Microbearing removes shift drum friction for the quickest shifting.
The closest to a "paddle shifter" for a motorcycle that you will ever find!!

................................

Install notes:

Installation requires countershaft sprocket removal. Impact wrench recommended
8mm box wrench and socket set Most newer 12 point  8mm wrenches are thin enough to work in these close quarters.
Does not require case splitting.
Estimated shop time: 1.0 to 2.5 hours
Suggest to do when replacing chain and sprockets.

Remove the countershaft sprocket.
Loosen every bolt on the shifter cover.
Remove every bolt that you can get to.
There will be one or two bolts that the frame will be in the way.
Don't have to grind the frame......
Reach back, behind the cover and there will be one or twp small alignment dowels that are still stuck in the engine case. The height of the dowels is why you can't remove the cover (with the screw still installed)
Use needle nose pliers or "your choice of tools" to lift them out towards you.
Then, screws will have enough clearance to slide sideways, with the cover - and you can get to the STAR and Detent Arm.

It's possible that some individual frames may be bent and welded very slightly differently, but we haven't seen one, yet.

Teka SFI - THE solution for quick fuel injection changes




Teka SFI Fuel injection tool
$695

OUT of stock

call
800 869-0497

works on Boulevards, DL's, SV's, TL's, gsxr's, Busa's till at least 06!

Hook it up - richen or lean it -
unhook and ride.

30 seconds.

Teka  SFI Suzuki Fuel Injection Adjusting Tool

Taking the tuning industry by storm.

Easy to tune the multiple bikes with the same, single unit - Improves low rpm over pc's and stock!
Wider range with fine increments - perfect for late model FI Suzuki motorcycles. Most reliable of all FI fueling tuning tools.  It's a tool to remap the stock box - not a "stay on" electronic box.

The Teka SFI allows the user to dial in Suzuki fuel injection systems. Adjusts low speed / idle (unlike other units and also adjusts different ranges of throttle opening, up to and including full throttle - and does it ON THE FLY - at home, the shop or the strip.
IDLE CIRCUIT: Make changes as bike is running, real time, unlike other FI adjuster boxes - absolutely saving time when adjusting the low speed mixture. Select a cylinder and make it richer or leaner - as the bike is idling. Just like adjusting fuel screws - except you don't get your hands dirty!  Makes idle adjustment a 3 minute joy instead of a 15 minute, vague, aggravation!
RUN CIRCUIT RANGE: Make changes as bike is running - on road or dyno. Teka SFI extends the range, as compared to Yosh/Denso box.
RUN CIRCUIT INCREMENTS:
Teka provides smaller throttle position increments, too.
0% to 10%
25%
50%
75%
100%
Addresses Hayabusa off-idle glitches, where you need to richen up the "very small throttle opening" or just above that to address "hiccups".
Check the fueling on your local Low Inertia 4-Gas EC997 eddy-current dyno, adjust the stock ECU for maximum power, set it and take your Teka Fuel Injection Programmer away with you.  That's good for 1-2 True HP over pc on a Hayabusa installation when tested under load on real dyno.

Works on all street FI Suzuki's till at least 2006.

RTR-SUZ-36-04       $54.95

The Factory Pro S36 Ignition Advance Kit advances the timing 5 degrees!
(Power Commander Ignition Module notes: "says 10", but, "10 dynojet degrees" is only about 2 real degrees, as of Jan 08)

Improves power and "snap", lowend and midrange and even a True horsepower or so at full throttle in a stock engine (meaning an engine with stock compression)

With stock engines with stock compression ratios, there is more power everywhere. Part throttle power is better - helping corner exit speeds. Improved in-town drivability.

It's 100% reliable, unlike electronic ignition boxes....

This kit also fits the SV650 - and requires a 1/2" impact wrench to remove the flywheel with the supplied rotor puller.

This bike already had a pipe, Factory Pro Superflare Stacks, a K&N air filter and no additional FI tuning was done

BMC air  filter system

FI-BMC-20411S
$89.95
FI-BMC-20411R
$99.95

True Rear Wheel Horsepower (tm) scale - difference between other scales.

Cams!  You thought we only made carb kits, shift kits and air filters and EC997 dynos?

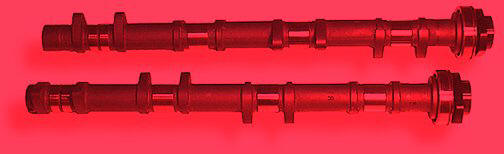

FATBACK Cam Set
Suggested Street cam and powerband - better for stunting

$799.95
(exchange)

Call to order
2 week delivery at THIS time.

FATBACK Cam Set
Just drop them in - use stock valve springs

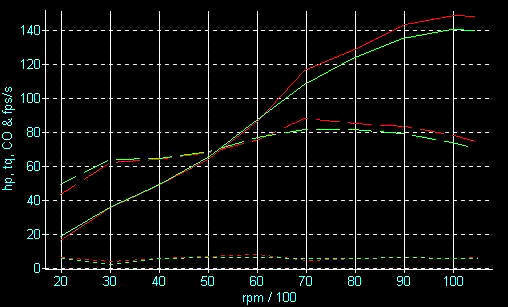

We developed a set of EC997 dyno developed cams that will drop in and perform without changing valve springs! Simple, inexpensive, HIGH HP mod.
Producing between 7 and 8 peak True HP and 7-8 through the mid and upper mid over stock cams, with no other changes (even before remapping the stock ECU!).

These cams are built-up and reground - allowing more cam lobe profile design flexibility as compared to simple "reground" cams. Unlike simple "reground" cams, adjusting the valves is a minor procedure, requiring minor shim thickness changes.
Does not require large thick valve shims for lighter valve train weight.

Awesome!
Call 415 491-5920 to order!

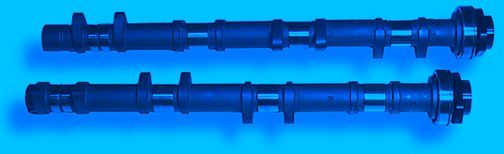

TopKick Cam Set
MAXimum High RPM power with a DROP-IN camset

Effect of


click for full size

$799.95
(exchange)

TopKick Cam Set

Just drop them in - use stock valve springs

We developed a different set of EC997 developed cams that will drop in and perform without changing valve springs! Simple, inexpensive, HIGH HP mod!
Producing about the same midrange and 12 to 15 more peak True HP over stock cams, with no other changes (even before remapping the stock ECU!).

These cams are built-up and reground - allowing more cam lobe profile design flexibility as compared to simple "reground" cams. Unlike simple "reground" cams, adjusting the valves is a minor procedure, requiring minor shim thickness changes.
Does not require large thick valve shims for lighter valve train weight.

Awesome!
Call 415 491-5920 to order!

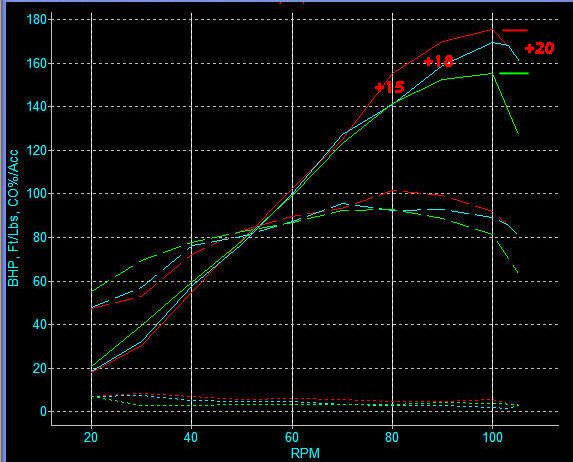

Maximum, maximum Top End Power Kit
TopKick d'Max: Topkick Cams and Superflare Velocity Stacks

about $1099 and 4 hours labor.......

GSX1300r Hayabusa
Patented Factory Pro Velocity Stacks installation hints

After you have the airbox removed, (ok, one hint is that the throttle body clamps clamp the airbox rubbers to the throttle bodies). - look at the stock rubbers from the bottom side  - they are "offset" in the hole.

Remove the stock rubber velocity stacks. They are semi glued in with what looks like a light latex glue, so you'll have to kinda push the outer edge inwards till they collapse in on themselves - then push them on out.
Push into the airbox or out of the airbox - either way is fine.
(why do we write "in to" as "into", but, "out of" is two words and not "outof"?

Flip the airbox upside down.

Usually, there will be a dab of paint on the new adapter rubbers that you'll line up to the 2 index marks cast into the bottom of the airbox.

If there's not  a paint dab, just remember, the "skinny side" of the adapter rubber lines up to the 2 airbox indexing marks.

To glue or not to glue the new adapters?

I don't glue them. They seal relatively perfectly at the airbox and then they clamp onto the throttle bodies. What more could you want? They can't rotate in the hole if they are clamped to the throttle bodies.....

Note! The patented stack's "Throttle Body Stuffer" tongue goes into the stock throttle bodies, retaining more laminar air flow and conserving refracting wave potential. So.... make sure the stuffer tongue is on the outside of the airbox.

If the paint dab wanders away from the index marks on the airbox, no worries (as they say down there) - Once you get the inside and outside lips "happy" above and below the airbox hole, we left just a slight amount of "wiggle room" and you can just rotate the rubbers back into alignment.

Skinny side next to the airbox index marks and thick side of the adapter rubbers - away from the airbox marks - towards the front of the airbox / bike.

Stuffer tongue ready to insert into the throttle bodies.

You can see the retaining female groove on the Factory Pro stack and if you were playing with the adapter rubbers and the stacks before you put them in, you'll have seen how the patented clampless retaining system works.

Finally, a real use for "Liplock".

Choices.....

You can either install the airbox onto the bike now and put the aluminum stacks on later - that makes putting the stacks into the rubbers easier by keeping the rubber from rotating in the airbox hole - OR - you can install the stacks into the rubbers and reorient the rubbers again before you reinstall the airbox.
Either way is OK.

If you are feeling the need for some lubrication, use a temporary water based lube, not oil based.

Almost in........

In.

Once again, if the rubbers rotated in the airbox hole, just rotate them back to reindex them.

The one piece airbox looks the same except you can't see the inside.

Now - if the airbox isn't already installed, just reassemble the airbox, put the stock throttle body clamps back onto the new adapter rubbers and put it back on the bike - along with the other parts that you took off.

Yes - we always suggest that you use a Genuine Suzuki Service Manual. It's the LAST WORD.

We did the Superflaretm R&D with a properly tuned stock Hayabusa with a pipe on it. We did no additional fuel injection mapping during stack R&D - beyond originally tuning the "stock stacked" bike to Best Power settings in the first place.

The 6 to 8 True HP that we got in the upper mid was due to the stacks alone - as the mixture really didn't change much with the stacks.

Factory Pro Velocity Stacks work primarily by increasing the engine's dynamic compression - kind of like milling the cylinder head or slightly higher compression pistons over a range of desired rpm ranges. Increasing compression doesn't require big fuel changes. Dynamic compression is different from cranking compression. Dynamic compression is essentially cranking compression + extra air that gets trapped in the combustion chamber as a result of proper intake tract (velocity stack) length, intake cam closing and also the effects of the exhaust systems in a RUNNING engine.
Dynamic compression effects are also related to rpm ranges - as intake ram charging; commonly occurs strongest over a 3000 to 3500 rpm range. (usually....)

Can you get less dynamic compression than cranking compression under running conditions?
Yes. If the resonant frequencies of the intake or exhaust systems are wrong, the systems can yank air back out of the combustion chamber before the intake valve closes (and you'd call that a "flat spot".

Our 'Busa stacks make it right.

Could you get better performance if custom mapping for the stacks?
Well, yes and maybe no.
If you tune your Hayabusa "to an air fuel ratio" on a dealership level dyno, you are virtually guaranteed to miss potential power in the real world.

To put it another way, drop them on a stock engined bike and woohoo!
Tune it to an "af ratio" on a dealership level dyno and less woohoo.

Proper tuning requires that the engine be tuned to Best Power and Engine Smoothness. There is potentially a difference of 6-7 True HP s compared to "af ratio".
